Short Description:

It adheres for the tenet “Honest, industrious, enterprising, innovative” to create new products consistently. It regards buyers, success as its own success. Let us develop prosperous future hand in hand for Reasonable price China Good Quality Wet Magnetic Separator From Jxsc Mining Machinery Factory, As we are moving ahead, we hold an eye on our ever-expanding products range and make improvement to our companies. It adheres for the tenet “Honest, industrious, enterprising, i...


Send email to us Download as PDF

Product Detail

Product Tags

It adheres for the tenet “Honest, industrious, enterprising, innovative” to create new products consistently. It regards buyers, success as its own success. Let us develop prosperous future hand in hand for Reasonable price China Good Quality Wet Magnetic Separator From Jxsc Mining Machinery Factory, As we are moving ahead, we hold an eye on our ever-expanding products range and make improvement to our companies.
It adheres for the tenet “Honest, industrious, enterprising, innovative” to create new products consistently. It regards buyers, success as its own success. Let us develop prosperous future hand in hand for China Magnetic Separator, Wet Magnetic Separator, Make sure you seriously feel free to send us your requirements and we are going to respond to you asap. Now we have got a experienced engineering group to serve for your just about every detailed needs. Cost-free samples could be sent in your case personally to understand much more information. In an effort to meet your requires, be sure to seriously feel free to make contact with us. You may send us emails and contact us directly. Moreover, we welcome visits to our factory from around the globe for much better recognizing of our organization. nd things. In our trade with merchants of numerous countries, we usually adhere for the principle of equality and mutual benefit. It is actually our hope to market, by joint efforts, each trade and friendship to our mutual advantage. We look forward to getting your inquiries.
Quick Details:

Applicable Industries: Energy & Mining                                                                       Local Service Location: None
Showroom Location: None                                                                                              Condition: New
Type: Magnetic Separator, Wet type                                                                              Production Capacity: 98%
Place of Origin: Shandong, China                                                                                  Brand Name: GUOTE
Voltage: 220V/380V                                                                                                         Dimension(L*W*H): Different models
Weight: 4-165t                                                                                                                    Certification: ISO:9001
Marketing Type: Ordinary Product                                                                               Machinery Test Report: Not Available
Video outgoing-inspection: Not Available                                                                    Warranty of core components: 1 YEAR
Core Components: Motor                                                                                                 Key Selling Points: Automatic
Feeding size:
Application: Ore                                                                                                                 Function: Deironing purification
Usage: Mining Separatoion                                                                                              Machine type: GTLH
Keywords 1: magnetic separator                                                                                     Keywords 2: electromagnetic separator
Keywords 3: high intensity magnetic separator                                                          Warranty: 12Month

Product Introduction:


The high intensity magnetic separator with most advanced technology and best performance in the worldwide. Whole equipment have swivel vertical rotation and back flush mineral ores functions, following with high frequency vibration motor. It has higher enrichment ratio and can adapt different particle size and concentration and grade of mineral ores. And also have advantages of reliable working and easy operation and maintenance.


Application scope:


It is suitable for the purification of iron and fine grained red ore (hematite limonite siderite, etc.) in non-metallic ore, such as kaolinite


Advantages:


 1,Vertical Swivel with High separation efficiency: Vertical Swivel rotation and back flush mineral ores make the flat ring jam problem shooting.
2,Unique magnetic medium with high magnetic intensity: the company patented magnetic medium could offer high gradient magnetic field with max. Magnetic intensity up to 20000Gs.
3,Good cooling effect with stable magnetic field. The excitation coil adapt hollow tube with higher thickness. The water could flow through tube and take away the heat after water circulation.
4,Widely used for different field and no need maintenance.





Technical parameter:





Model GTLH-500 GTLH

-750(Z)

GTLH

-1000

(Z)

GTLH

-1250

(Z)

GTLH

-1500

(Z)

GTLH

-1750

(Z)

GTLH

-2000

(Z)

GTLH

-2500

(Z)

GTLH

-3000

(Z)

Rated background magnetic field(T) 1(0.6)Constant current continuously adjustable
Magnetic field 1.9(1.2)Constant current continuously adjustable
Energizing power(KW) ≤10(6) ≤13(8) ≤17(10) ≤19(12) ≤27(15.5) ≤37(23) ≤42(29) ≤57(37) ≤74(48)
Handing capacity(t/h) 0.1-0.3 0.1-0.5 3.5-7.5 10-20 20-30 30-50 50-80 80-150 150-250
Slurry throughput(m3/h) 0.25-0.5 5-10 12.5-20 20-50 50-100 75-150 100-200 200-400 360-650
Magnetizing current(A) 63 72 85 92 105 124 130 153 185
Slurry density(%) 10-40
Feed particle size -1.0 -1.0 -1.2 -1.2 -1.2 -1.2 -1.2 -1.2 -1.2
Ring speed

(r/min)

3
Ring diameter(mm) Φ500 Φ750 Φ1000 Φ1250 Φ1500 Φ1750 Φ2000 Φ2500 Φ3000
Ring motor power(KW) 0.37 0.75 1.1 1.5 3 4 5.5 11 18.5
Ripply motor power(KW) 0.37 1.5 2.2 3 3 4 7.5 11 18.5
Pulsion stroke(mm) 0-30(Mechanically adjustable)
Pulsion frequency 0-300(Variable frequency conversion)
Excitation voltage(DCV) 0-409(280)(Change with current)
Unloading water pressure(Mpa) 0.1-0.2 0.1-0.2 0.2-0.4 0.2-0.4 0.2-0.4 0.2-0.5 0.2-0.4 0.2-0.4 0.2-0.4
Water supply pressure(m3/h) 0.65-1.4 1.4-2.5 8-12 12-20 20-30 30-50 50-100 100-150 150-250
Host weight(t) 3(1.5) 5(3.5) 9(7) 14(11) 24(20) 35(28) 50(39) 105(83) 150(135)
Maximum part weight(t) 0.3(0.25) 0.6(0.5) 2.2(2) 4(3.5) 5(5) 11(9) 16(13) 23(18) 24(19)
Dimensions(mm) 1800*

1400*

1320

2000*

1360*

1680

2700*

2000*

2400

3200*

2340*

2700

3600*

2900*

3200

3900*

3300*

3800

4200*

3650*

4200

5800*

6000*

5400

7600*

6500*

7200

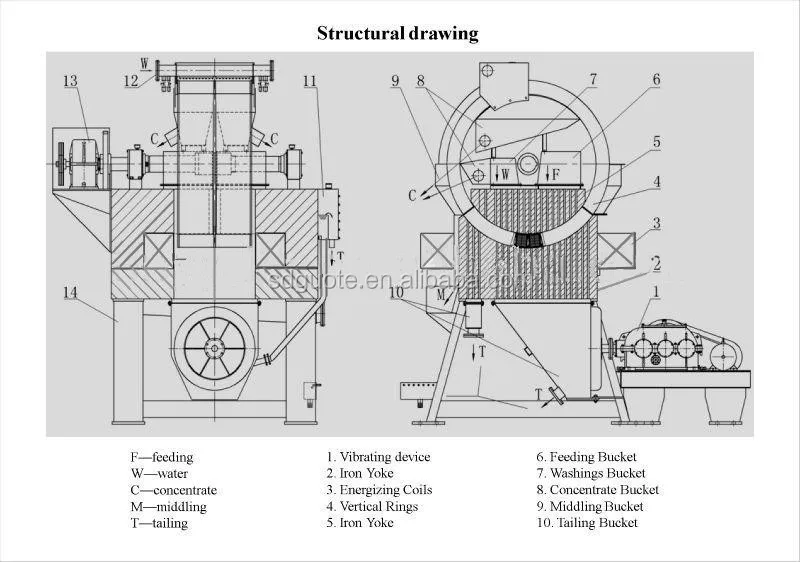

Working principle:

Pulp through the feeding tube into the feed hopper, pulp along the magnetic gap through the swivel,

high permeability of the stainless steel rods inside the ring of the magnetic induction medium magnetized in the background magnetic field, form a high gradient magnetic field, magnetic medium pulp in the magnetic particles are adsorbed on the surface of magnetic medium,

the swivel rotation was taken to to the top of the magnetic field area, by flushing with rinse water pressure, the magnetic materials into concentrate in the bucket, non-magnetic particles along the magnetic gap into the tailings under drained bucket in order to realize the separation of material

Swivel lower magnetic medium of submerged within the ore slurry surface,

at the same time of slurry injection, installed at the side of the tailings boxes of reciprocating motion stroke box constantly doing, make through tympanic membrane separation indoor pulp do fluctuate,

the pulsating flow physical ore grain group always maintain loose state in the process of sorting, effectively remove the particles in material, significantly improve the grade of concentrate

low power consumption excellent service factory directly supplied wet magnetic separator



Company Information:

Certification

International Trade Department

low power consumption excellent service factory directly supplied wet magnetic separator

Our customers :

low power consumption excellent service factory directly supplied wet magnetic separator

Our Services

1.EPC service for single equipment and whole production line.

2.OEM service for your personal equipment or production line

3.Testing before delivery  and Pretesting in working site until get qualified products

4.24hours for technical Operation Guide and  4hours offer technical proposal for problem shooting.

Packaging & Shipping





FAQ



Q: Why we believe in Weifang GuoteMining Equipment  Company?
A: 1. More than 10 years experience.
Q. We are the leading professional supplier of mining equipments and service for quartz mining equipment industry.
A. All products achieved ISO9001:2000 quality management certificate and EU CE certificate.



Q: Delivery time
A: The lead time is 10-30 days, delivery time will vary depending on the type of the machine, shipping method selected and part availability.



Q: Payment terms
A: Accepted Payment Type: T/T, L/C, Western Union, Cash.
After sign the contract, pay the 30% deposit of total purchase price and pay the full payment before delivery.



Q: What will you do if the machine is broken down?
A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.



Q: What should I do if I want to get a best quotation?
A: If you want a suitable type for you, please let us know your material and capacity.
