GTLH Vertical Ring High Gradient Magnetic Separator
Product introduction:
At present at home and abroad the best performance, the most advanced technology of high – intensity magnetic separation equipment.The machine adopts rotary ring vertical rotation, recoil concentrate, and equipped with high frequency vibration mechanism.It has the advantages of large concentration ratio, strong adaptability to the fluctuation of feed grain size, concentration and grade, reliable work and convenient operation and maintenance.
Application:
It is suitable for the purification of non-metallic minerals such as quartz, feldspar, nepheline and kaolin, as well as the wet separation of weakly magnetic metallic minerals such as hematite, limonite and siderite, manganese ore, ilmenite and wolframite, and the separation of wolframite and cassiterite.
Outstanding advantages:
1.Wide range of application, the machine reliable maintenance free.
2.Good cooling effect, more stable magnetic field.
3.The excitation coil is made of hollow tube wire with large thickness. The water flow passes directly through the center of the hollow tube wire. The heat of the coil is transferred to water in the most direct way.
4.Unique magnetic medium with high induced magnetic field: the magnetic medium adopts the patented product developed by the company itself, which can generate high gradient magnetic field, and the induced field strength can be up to more than 20000 gauss.
5.Vertical rotary ring, high sorting efficiency: vertical rotary ring, recoil concentrate.The problem of blocking of magnetic medium in flat ring high intensity magnetic separator is solved.
The working principle:
Pulp through the feeding tube into the feed hopper, pulp along the magnetic gap through the swivel, high permeability of the stainless steel rods inside the ring of the magnetic induction medium magnetized in the background magnetic field, form a high gradient magnetic field, magnetic medium pulp in the magnetic particles are adsorbed on the surface of magnetic medium, the swivel rotation was taken to to the top of the magnetic field area, by flushing with rinse water pressure, the magnetic materials into concentrate in the bucket, non-magnetic particles along the magnetic gap into the tailings under drained bucket.To achieve the separation of materials.Swivel lower magnetic medium of submerged within the ore slurry surface, at the same time of slurry injection, installed at the side of the tailings boxes of reciprocating motion stroke box constantly doing, make through tympanic membrane separation indoor pulp do fluctuate, the pulsating flow physical ore grain group always maintain loose state in the process of sorting, effectively remove the particles in material, significantly improve the grade of concentrate.
Technical parameters:
|
model |
GTLH-500T |
GTLH-750T |
GTLH-1000T |
GTLH-1250T |
GTLH-1500T |
GTLH-1750T |
GTLH-2000T |
GTLH-2500T |
GTLH-3000T |
|
Rated background field strength
(T) |
1.4T（1.8T）Constant current continuously adjustable |
||||||||
| Dielectric field |
2.1T(3.6T )Constant current continuously adjustable |
||||||||
|
Rated excitation power(KW) |
≤20(28) |
≤30(42) |
≤40(10) |
≤50(27) |
≤60(84) |
≤72(100) |
≤85(119) |
≤98(138) |
≤110(154) |
|
Dry ore handling capacity
(t/h) |
0.03~0.125 |
0.1-0.5 |
4~7 |
10-18 |
20-30 |
30-50 |
50-80 |
80-150 |
150-250 |
|
Pulp throughput
(m3/h) |
0.25-0.5 |
1~2 |
12.5-20 |
20-50 |
50-100 |
75-150 |
100-200 |
200-400 |
360-650 |
|
excitation current(A) |
42 |
64 |
85 |
105 |
127 |
153 |
180 |
207 |
233 |
|
Feed concentration(%) |
10-40 |
||||||||
|
Feed particle size |
-1.0 |
-1.0 |
-1.2 |
-1.2 |
-1.2 |
-1.2 |
-1.2 |
-1.2 |
-1.2 |
|
Swivel speed(r/min) |
3 |
||||||||
|
Swivel snap
(mm) |
Φ500 |
Φ750 |
Φ1000 |
Φ1250 |
Φ1500 |
Φ1750 |
Φ2000 |
Φ2500 |
Φ3000 |
|
Rotary motor power (KW) |
0.18 |
0.75 |
1.1 |
1.5 |
3 |
4 |
5.5 |
11 |
18.5 |
|
Ripple motor power(KW) |
0.55 |
1.5 |
2.2 |
3 |
3 |
4 |
7.5 |
11 |
18.5 |
|
Pulsating stroke(mm) |
0-30（Mechanically adjustable） |
||||||||
|
Pulse times (per second/minute) |
0-300（Adjustable frequency） |
||||||||
|
The excitation voltage(DCV) |
0-514(700)(Varying with current) |
||||||||
|
Discharge water pressure
(Mpa) |
0.1-0.2 |
0.1-0.2 |
0.2-0.4 |
0.2-0.4 |
0.2-0.4 |
0.2-0.5 |
0.2-0.4 |
0.2-0.4 |
0.2-0.4 |
|
Discharge water consumption
(m3/h) |
0.65-1.4 |
1.4-2.5 |
8-12 |
12-20 |
20-30 |
30-50 |
50-100 |
100-150 |
150-250 |
|
The host weight(t) |
4（1.5） |
8（6.5） |
15（19.5） |
24（31.2） |
34（44） |
45（58） |
60（78） |
125（163） |
165（215） |
|
Maximum unit weight(t) |
0.5（0.25） |
1.1（1.15） |
3.3（3.7） |
5（6.5） |
7（11） |
15（19） |
20（23） |
32（38） |
38（45） |
|
Overall dimension length * width * height
(mm) |
1800*1400*1320 |
2000*1360*1680 |
2700*2000*2400 |
3200*2340*2700 |
3600*2900*3200 |
3900*3300*3800 |
4200*3650*4200 |
5800*6000*5400 |
7600*6500*720 |
1.EPC service for single equipment and whole production line.
2.OEM service for your personal equipment or production line
3.Testing before delivery and Pretesting in working site until get qualified products
4.24hours for technical Operation Guide and 4hours offer technical proposal for problem shooting.
Q: Why we believe in Weifang GuoteMining Equipment Company?
A: 1. More than 10 years experience.
Q. We are the leading professional supplier of mining equipments and service for quartz mining equipment industry.
A. All products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q: Delivery time

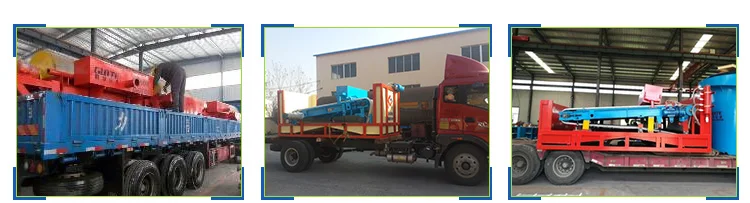

A: The lead time is 10-30 days, delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q: Payment terms
A: Accepted Payment Type: T/T, L/C, Western Union, Cash.
After sign the contract, pay the 30% deposit of total purchase price and pay the full payment before delivery.
Q: What will you do if the machine is broken down?
A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q: What should I do if I want to get a best quotation?
A: If you want a suitable type for you, please let us know your material and capacity.
